Roller Rule Mechanical Pencil

The Roller Rule Mechanical Pencil or A Different Yard-o-Led Part 2

I recently posted a copy of an old advertisement about a mechanical pencil with an inbuilt measuring wheel. Well that posting jogged the memory of ‘P’ and he commented that his grandfather had one of those pencils. 'P’ then went on a bit of a hunt and found the pencil in question, and sent me these photos and a little more information about it.

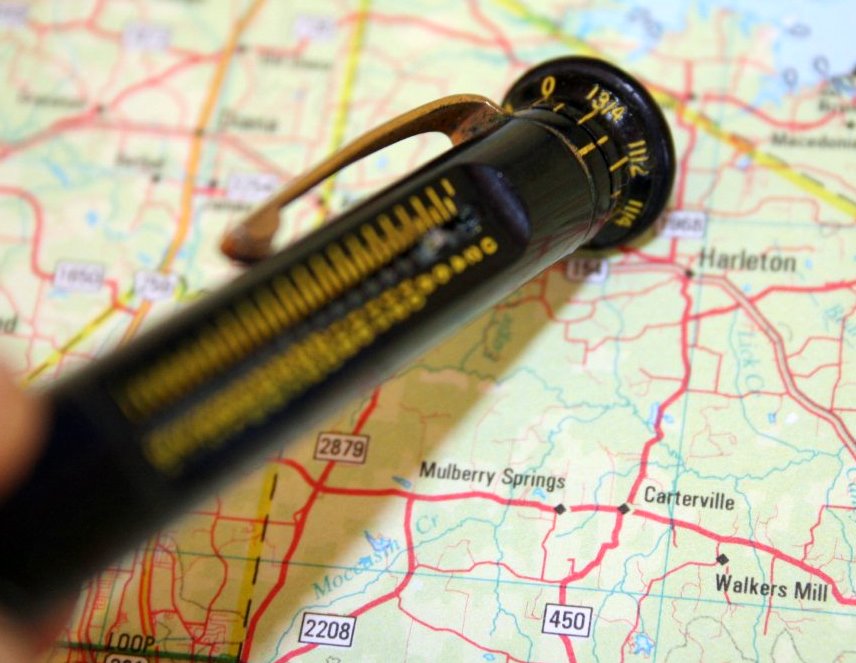

P’s grandfather used to use his Roller Rule mechanical pencil to measure road trip distances on a map. P demonstrates and explains here.
roller rule mechanical pencil
The cap rotates with friction against your map. The cap is supposedly 1 inch in circumference, and the cap is calibrated to the 1/8 inch. For each rotation of the cap the ‘head on the shaft’ moves one indicator. And as the advertisement says there are 36 indications, i.e. it can measure up to 36 inches. The shaft has a corkscrew that moves the head.
roller rule mechanical pencil top section
roller rule top caproller rule measuring graduations

The lead measures .046 inches in diameter. (That’s 1.18mm in modern speak) Eraser inside the body.
roller rule pulled apart to show eraser

The pocket clip reads, “USA PATD ROLLER RULE.”
roller rule mechanical pencil pocket clip

Photos and text supplied by, and used with permission of ‘P’.
